R Punches

This FEL data is not for V-bending. ( Value "D" can not be calculated.) Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode. ("3D Data"/"Shape Data"/"Angle Data" are Not Available.)

*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"

Not possible to calculate D value (Except V bend type tool)
Radius Bend 3U Die Offset Tool Hemming Wing Bend
Radius Bend 3U Die Offset Tool Hemming ウイングベンド

Download

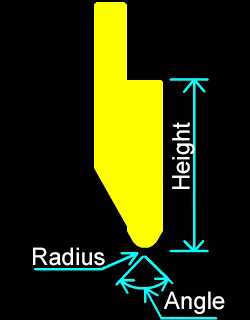

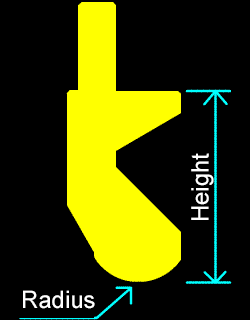

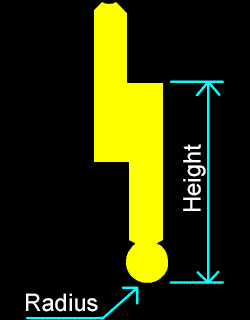

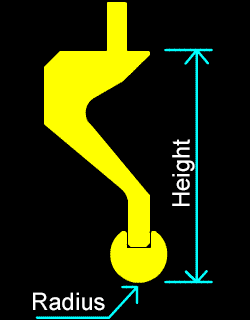

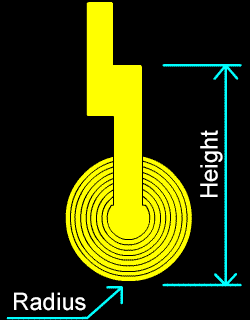

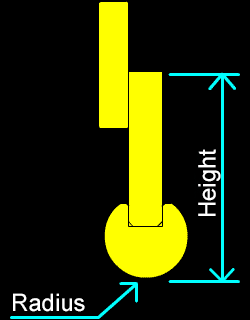

  FELNo. Product Angle Radius Height CATNo. Image
1 01708 Radius
Ruler		   8 81
2 01709   9 81
3 01710 10 83
4 01713   13 85
5 01714   14 87
6 01715 15 87
7 017170   17 89
8 01717 17.5 89
9 01720 20 91
10 01725 25 96
11 01730   30 101
12 01735   35 97
13 01750 50 112
14 03010 Color
Radius		 10 83
15 03012 12.5 85.5
16 03015 15 88
17 03017 17.5 90.5
18 03020 20 93
19 03022 22.5 95.5
20 03025 25 98
21 03027 27.5 100.5
22 03030 30 103
23 23000 Punches for Kitchen Appliance
(R Bend)		 17.5 65 23100
24 23100 17.5 65 23000
25 00300 Heavy Gauge Punches 60 6 65 13800
26 13800 60 6 65 00300
27 09030 Tip-Type Radius Punches 3 65 09083
28 09040 4 67 09084
29 09050 5 69 09085
30 09060 6 70 09086
31 09080 8 74 09088
32 09010 10 79 09081
33 09083 3 65 09030
34 09084 4 67 09040
35 09085 5 69 09050
36 09086 6 70 09060
37 09088 8 74 09080
38 09081 10 79 09010
39 09100 10 79 09010
40 41510 Gooseneck Punch
Holders		 10 136
41 41512 12.5 138.5
42 41515 15 141
43 41517 17.5 143.5
44 41520 20 146
45 41522 22.5 148.5
46 41525 25 151
47 41527 27.5 153.5
48 41530 30 156

▲
